Life Gate Automation Aluminium Swing Gate Automation Product Bundle
Life Swing Aluminium Gate Automation Bundle
The Life aluminium swing gate and automation kit package contains the following:

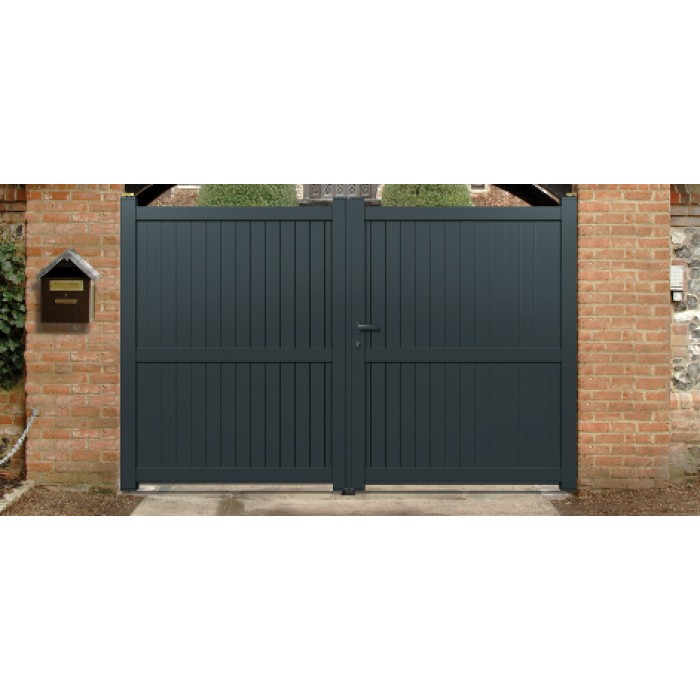

1) Pair of aluminium flat top, fully boarded swing gates in anthracite grey
The gates are 1.8m high and for driveway openings of either 3.5m or 4m.
2) Your choice of Life gate automation kit from the following:
Life Armor 24Vdc articulated arm motor kit for swing gate leaves up to 2.3m
Life OPTIMO Sky Line 230Vac linear screw kit for swing gate leaves up to 3m
You can also add a Life Probo PR60R garage door automation kit for just £115 which saves over £100 off list price.
You can also include an aluminium flat top, fully boarded pedestrian gate 1.8m high for openings of 1m for just £540.
Option 1 - Choose Your Gate Automation Kit

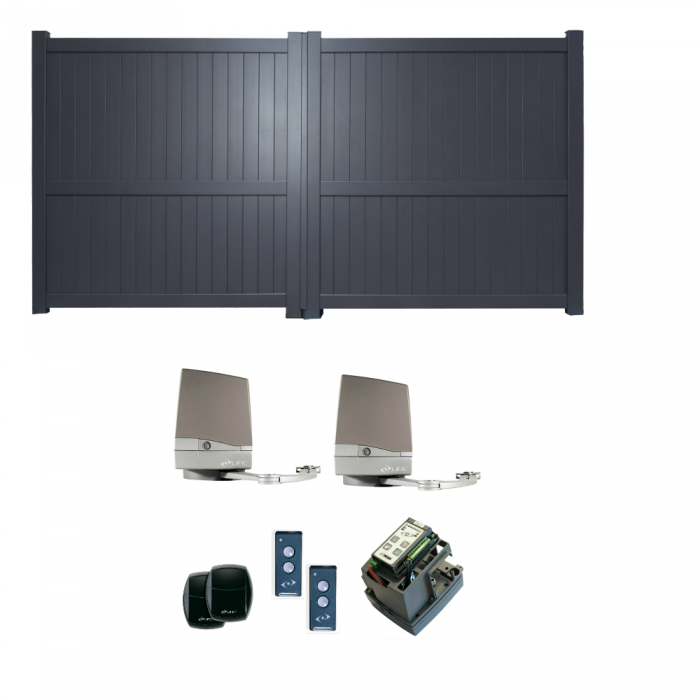

Armor Articulated Arm Gate Motor Kit
The Armor 24Vdc kit is suitable for swing gates up to 2.3m.
- Easy to install
- No welding required
- Simplified controls
- 2 years Guarantee
The Kit Contains:
- 1 X ARO 24 UNI articulated arm gate motor equipped with encoding limit switches in opening and closing
- 1 X AR2 24P UNI DL articulated arm gate motor equipped with mechanical opening and closing stop system
- UNI24RDL control unit
- 1 pair of VISIO external photocells
- 2 X DREAM 2 button 433.92Mhz rolling code transmitter
Click here for more product information and to download product manual
Skyline Linear Screw Electromechanical Gate Motor Kit
The Kit Contains:
- 2 X OP3 SL SKY LINE UNI 230Vac
- 1 X GE UNI RS DL control unit with integrated receiver
- 2 X VISIO external photocells
- 2 X DREAM 2 button 433.92Mhz rolling code transmitter
- 1 X SKANT Matching antenna and coaxial cable
The Skyline linear screw motor offers the choice of slow or fast operation.
The release mechanism is protected from contamination and has been designed for quick and simple operation if required.
The motor is equipped with 1m long power and signalling cables.
It also comes with an internal cabling system which makes maintenance simple.
Bolt on brackets are included and mounting instructions are clear and simple.
Click here for more product information and to download product manual
Option 2 - Select The Size Of Your Driveway Swing Gates

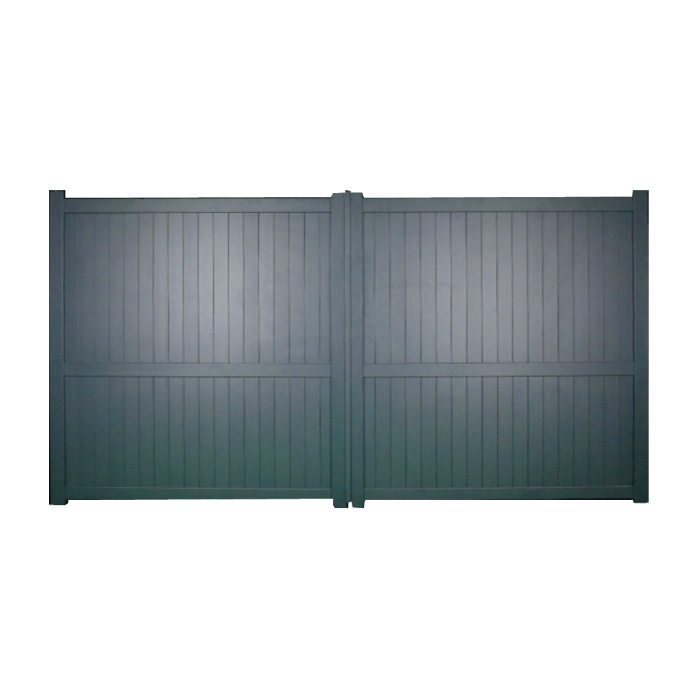

1.8m high pair of aluminium, full boarded, flat top swing gates in anthracite grey.
Available in two widths for openings of 3.5m or 4m (dimension A).
Width of the gate = A = Width between pillars
Height of the gates = B = Hinge stile height from the ground
D = Pillar height from ground to underside of coping stone
PLEASE NOTE – Pillar height D must be at least 100mm more than hinge style height B
Option 3 - Add A Pedestrian Gate?

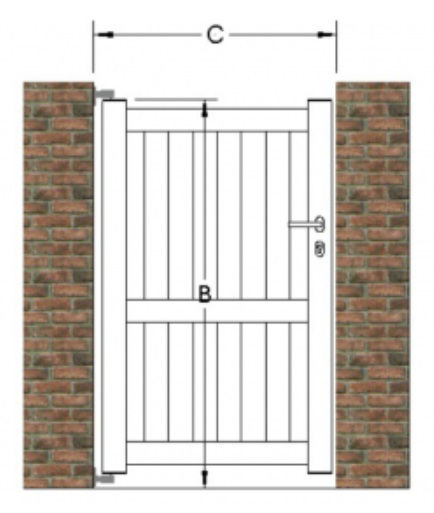

1.8m high aluminium, full boarded, flat top swing gate in anthracite grey.
Available for openings of 1m (dimension C).
Width of the gate = C = Width between pillars
Height of the gate = B = Hinge stile height from the ground
Option 4 - Add A Garage Door Automation Kit?
Add the Life Probo PR60R garage door automation kit to your aluminium gate and Life automation kit bundle and save over £100 on the full price of the Probo kit.
Life PROBO PR60R kit for automating garage and sectional doors up to 7 square metres
Life automation gives you easy installation, high quality and safety.

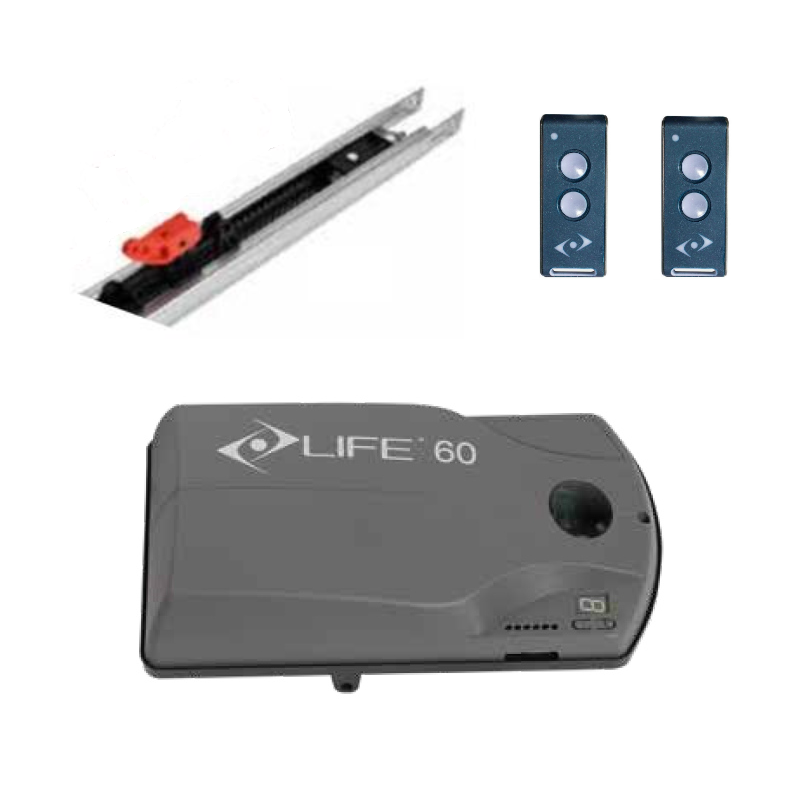

The Probo PR60R kit contains the 24V Life PR60R garage door motor, the garage door automation track and two Life Dream transmitters.
This garage door automation system works with the following types of garage door:
Click here for more product information and to download product manual
What Type Of Garage Door Do You Have?
Horizontal track up and over solid garage doors
Solid doors that rise on horizontal rails inside the garage. These horizontal tracked doors have rollers at the top corners that run along the channel rails as they open. A counter balance spring is mounted on each side of the door.
Sectional Garage Doors
Sectional garage doors are not solid like up and over tracked garage doors. Instead, they are made from a number of horizontal sections that are hinged where they meet. Rollers at their edges run along tracks on each side of the garage door. These start at the edges of the garage door and run vertically, then curve into the garage and finish horizontally at the same height as the top of the garage door. A counter balance spring is installed on the top of the door frame. This lifts the door by cables mounted at the bottom corners.
Canopy Garage Doors or Vertically Tracked Doors
This style of garage door requires the use of the canopy door conversion arm which can be bought separately. These are solid doors with rollers nearer their base that run along a vertical track either side of the garage door opening. A counter balance spring is mounted to the top of the door frame.
Click here for the adapter arm
Door Dimensions
Once you have used the guide above to confirm your garage door type is suitable for automation, check your garage door dimensions. The PR60R opener is rated for doors of no more than 7 square metres area, and a height of 2.24 metres. Taller doors can be automated with a longer rail. Please contact us for more details if you have a very tall door. Email [email protected] or call 03300 883 890
The motor has a traction force of 700N which is more than adequate for a standard garage door.
Any door to be automated must be in good working order. The door and tracks should be aligned so rollers run smoothly along them. A garage door automation system should never be installed on a garage door has become stiff or out of balance.
Garage Door Security
Please note that garages providing passage into the house can be a weak point in your home security. You are advised to fit security deadlocks on doors connecting the house to its garage. Garage doors and connecting doors should be connected to your house alarm by a qualified alarm fitter. The garage opener only provides powered operation of the door. It should not be considered as a locking device.
Swing Gate Installation Key Facts
Power Supply
A minimum of a 6 Amp power supply is required at the gate.
Power should be supplied at the gate as per electrical regulations.
Pillars And Posts
Pillars or posts should have a minimum height as in the illustration showing how to measure your gates.
Gate Safety
It’s the responsibility of the gate installer to carry out a risk assessment and to ensure that provision for required safety equipment is installed.
Effect of Wind
The swing gates supplied are close boarded. Strong winds blowing onto the face of these gates will affect the force required to open and close them. If you are installing close boarded gates in windy, exposed areas, upgrading the gate automation motors to stronger units should be considered.
